Setup|Express Tables from Variable Data

In Setup|Express Tables from Variable Data, you can create tables from variables in your variable type data file or edit existing tables in your job file. Upon initial entry into the Express Tables from Variable Data dialog box, WinCross displays the number of variables and number of cases in the open data file and the number of tables in the open job file.

Find a variable

Allows you to enter search criteria to locate a specific variable. This is especially useful when there are many variables in your data file and you only want to select a specific variable or group of variables.

Find Next

Finds the next occurrence of the search value specified in Find a variable. The Find Next button turns gray when no more occurrences of the search value are found.

Find a table

Allows you to enter search criteria to locate a specific table. This is especially useful when there are many tables in your job file and you only want to select a specific table or group of tables.

Find Next

Finds the next occurrence of the search value specified in Find a table. The Find Next button turns gray when no more occurrences of the search value are found.

Scan data when creating tables

Scan data when creating tables is the Express Tables from Variable Data default and provides a comprehensive search for all data values including data not represented by a Value Label. For large data files, the Scan data when creating tables option, may slow the process of creating tables. If you do not need to see data values that are not represented by Value Labels (outliers), you can deselect this option to reduce processing time. See Creating tables with the "Scan data when creating tables" option selected or Creating tables with the "Scan data when creating tables" option NOT selected below for more detailed information about this option.
You can limit the number of cases scanned when creating tables by entering the number of cases in the Scan cases field.

Note: If you limit the number of cases scanned when creating tables, if the Compute and display the frequency report automatically option is selected and Scan all cases is enabled, all cases may still be scanned. It is best to deselect the Compute and display the frequency report automatically option if you want to limit the number of cases being scanned.

Selecting variables

When a variable is selected from the list of variables, the variable Name, Type and Label are displayed. If multiple variables are selected, the information about the last variable selected will be displayed.
Compute and display the frequency report automatically - When selected, this option displays the Frequency of each Code and Value Label for the selected variable. If multiple variables are selected, the information about the last variable selected will be displayed.
Scan all cases - Scans all cases in the data file when computing the frequency report.
Scan n cases - Scans the number of cases specified when computing the frequency report.

Note: Table options for tables created using the Create n Table(s), Create One Table with n Rows or Create One Table Using Net Logic options are assigned from the Preferences section of your job file. Table options for tables created using the Summary of Means or Summary of Frequencies options, use a default set of the most commonly used table options for these types of tables.

Creating tables with the "Scan data when creating tables" option selected

Create n Table(s) - Select a variable or group of variables to create tables. This option creates one table for each variable selected. Variables can be non-contiguous by selecting the Ctrl key when selecting variables from the list. The table(s) is created using Value Lables when present or data values when Value Labels are not present.
Create One Table with n Rows - Select a variable or group of variables to create one table. This option creates one table. Each Value Label and Code Value from all variables selected becomes a row on the table. Data not represented by a Value Label also becomes a row on the table using the data value as the row text. Variables can be non-contiguous by selecting the Ctrl key when selecting variables from the list.
Create One Table Using Net Logic - Select a variable or group of variables to create one table. This option creates one table. The row logic for the table is created using the Scan (S) feature when variables are contiguous and using the OR logical operator when variables are not contiguous. The row text for the table is created using the Value Labels of the first variable selected. Data not represented by a Value Label also becomes a row on the table using the data value as the row text. Variables can be non-contiguous by selecting the Ctrl key when selecting variables from the list.

Note: If the variables selected have different Code Values, you will receive a message "The variables that were selected for netting are not identical to one another in their structure. Do you still want to create a net table?". This message is informational only and does not prevent you from creating the net table.

Summary of Means - Select a variable or group of variables to create one summary table.
This option creates one summary of means table with one row per variable selected.
The row text for the table is created using the Variable Label for each variable selected.
The row logic for the table is created using the Code Values or range of Code Values specified (i.e. 2,4,6 or 1-10) for the variables selected.
The rows are created with the Mean row option specified.
Variables can be non-contiguous by selecting the Ctrl key when selecting variables from the list.
Reverse scale will automatically add the necessary logic for reversing the Code Values (for example, ^Q2_1 (1-4) #1=4,2=3,3=2,4=1^SM). In the example given, for purposes of computing the mean, the code value 1 becomes a 4, the code value 2 becomes a 3, the code value 3 becomes a 2 and the code value 4 becomes a 1.
Enabling the Use variable label from first selected variable as table title option allows you to use the Variable Label from the first variable selected as the table title for the new table. If this option is not selected, WinCross uses a default table title.

Summary of Frequencies - Select a variable or group of variables to create one summary table.
This option creates one summary of frequencies table with one row per variable selected.
The row text for the table is created using the Variable Label for each variable selected.
The row logic for the table is created using the Code Values or range of Code Values specified (i.e. 2,4,6 or 1-10) for the variables selected.
You can also specify the Code Values or range of Code Values to be used for the percentaging base (this is optional and not required). When you specify Code Values or a range of Code Values for the percentaging base, the rows of the table are created twice.

Q.2 Agreement with the following statement: I consider myself an outdoors person^	Q2_1 (1-4)^HR
Q.2 Agreement with the following statement: I wish the parks were open for longer hours^	Q2_2 (1-4)^HR
Q.2 Agreement with the following statement: I wish all of the local parks in Arizona had after school programs for kids^	Q2_3 (1-4)^HR
Q.2 Agreement with the following statement: I trust that the Arizona Parks and Recreation staff are well-trained^	Q2_4 (1-4)^HR
Q.2 Agreement with the following statement: I consider myself an outdoors person^	Q2_1 (1,2)^1
Q.2 Agreement with the following statement: I wish the parks were open for longer hours^	Q2_2 (1,2)^2
Q.2 Agreement with the following statement: I wish all of the local parks in Arizona had after school programs for kids^	Q2_3 (1,2)^3
Q.2 Agreement with the following statement: I trust that the Arizona Parks and Recreation staff are well-trained^	Q2_4 (1,2)^4

The first set of rows is created with the Hide row option specified. The second set of rows is created with the percentaging row specified. The percentaging row is a numeric value that represents the sequence number of the row being used for percentaging. For example, the row logic ^Q2_1 (1,2)^1 is using row 1 of this table as the percentaging base for this row. Variables can be non-contiguous by selecting the Ctrl key when selecting variables from the list. This option is especially useful for top and bottom box summary tables.

Enabling the Use variable label from first selected variable as table title option allows you to use the Variable Label from the first variable selected as the table title for the new table. If this option is not selected, WinCross uses a default table title.
When only one Code Value is specified for Enter the code value or range for the rows, you can also choose to Use value labels as row text in place of the variable labels.
Select the Show filter row option to display the filter row. The default for Summary of Frequencies tables is to suppress the filter row.

Create 1 Table with a Single Frequency Row/Create n Tables with One Freq. Row Each - Select a variable or group of variables to create tables with a single frequency row.
A frequency row lets you quickly create row(s) for a table from a variable with many values. For example, you might want a table of zip codes, where each zip code is a row. A frequency row will generate a row for each value using the actual values in the data as row text.
This option creates one table for each variable selected.
Variables can be non-contiguous by selecting the Ctrl key when selecting variables from the list.
The table(s) is created using a default formatting mask and Sort order of Ascending.

Note: Enable the Show job file definition view check box to display the Job file definition window.

Creating tables with the "Scan data when creating tables" option NOT selected

Create n Table(s) - Select a variable or group of variables to create tables. This option creates one table for each variable selected. Variables can be non-contiguous by selecting the Ctrl key when selecting variables from the list. The table(s) is created using Value Lables when present and does NOT include data values when Value Labels are not present. Data not represented by Value Labels is added as a Frequency Row (i.e. AF=Q2_2^ ^OA^).
Create One Table with n Rows - Select a variable or group of variables to create one table. This option creates one table. Each Value Label and Code Value from all variables selected becomes a row on the table. Data not represented by Value Labels is added as a Frequency Row (i.e. AF=Q2_2^ ^OA^). Variables can be non-contiguous by selecting the Ctrl key when selecting variables from the list.
Create One Table Using Net Logic - Select a variable or group of variables to create one table. This option creates one table. The row logic for the table is created using the Scan (S) feature when variables are contiguous and using the OR logical operator when variables are not contiguous. If at least one of the variables selected has Value Labels, the row text for the table is created using those Value Labels. If none of the variables selected have Value Labels, a blank table is created. Variables can be non-contiguous by selecting the Ctrl key when selecting variables from the list.

Note: When the variables selected have different Code Values, you will receive a message "The variables that were selected for netting are not identical to one another in their structure. Do you still want to create a net table?". This message is informational only and does not prevent you from creating the net table.

Summary of Means - Select a variable or group of variables to create one summary table.
This option creates one summary of means table with one row per variable selected.
The row text for the table is created using the Variable Label for each variable selected.
If none of the variables selected have Value Labels, a blank table is created.
The row logic for the table is created using the Code Values or range of Code Values specified (i.e. 2,4,6 or 1-10) for the variables selected.
The rows are created with the Mean row option specified.
If none of the variables selected have Value Labels, a blank table is created.
Variables can be non-contiguous by selecting the Ctrl key when selecting variables from the list.
Reverse scale will automatically add the necessary logic for reversing the Code Values (for example, ^Q2_1 (1-4) #1=4,2=3,3=2,4=1^SM). In the example given, for purposes of computing the mean, the code value 1 becomes a 4, the code value 2 becomes a 3, the code value 3 becomes a 2 and the code value 4 becomes a 1.
Enabling the Use variable label from first selected variable as table title option allows you to use the Variable Label from the first variable selected as the table title for the new table. If this option is not selected, WinCross uses a default table title.

Summary of Frequencies - Select a variable or group of variables to create one summary table.
This option creates one summary of frequencies table with one row per variable selected.
The row text for the table is created using the Variable Label for each variable selected.
The row logic for the table is created using the Code Values or range of Code Values specified (i.e. 2,4,6 or 1-10) for the variables selected.
You can also specify the Code Values or range of Code Values to be used for the percentaging base (this is optional and not required). When you specify Code Values or a range of Code Values for the percentaging base, the rows of the table are created twice.

Q.2 Agreement with the following statement: I consider myself an outdoors person^	Q2_1 (1-4)^HR
Q.2 Agreement with the following statement: I wish the parks were open for longer hours^	Q2_2 (1-4)^HR
Q.2 Agreement with the following statement: I wish all of the local parks in Arizona had after school programs for kids^	Q2_3 (1-4)^HR
Q.2 Agreement with the following statement: I trust that the Arizona Parks and Recreation staff are well-trained^	Q2_4 (1-4)^HR
Q.2 Agreement with the following statement: I consider myself an outdoors person^	Q2_1 (1,2)^1
Q.2 Agreement with the following statement: I wish the parks were open for longer hours^	Q2_2 (1,2)^2
Q.2 Agreement with the following statement: I wish all of the local parks in Arizona had after school programs for kids^	Q2_3 (1,2)^3
Q.2 Agreement with the following statement: I trust that the Arizona Parks and Recreation staff are well-trained^	Q2_4 (1,2)^4

If none of the variables selected have Value Labels, a blank table is created.
Enabling the Use variable label from first selected variable as table title option allows you to use the Variable Label from the first variable selected as the table title for the new table. If this option is not selected, WinCross uses a default table title.
When only one Code Value is specified for Enter the code value or range for the rows, you can also choose to Use value labels as row text in place of the variable labels.
Select the Show filter row option to display the filter row. The default for Summary of Frequencies tables is to suppress the filter row.

Create 1 Table with a Single Frequency Row/Create n Tables with One Freq. Row Each - Select a variable or group of variables to create tables with a single frequency row.
A frequency row lets you quickly create row(s) for a table from a variable or record/column location with many values. For example, you might want a table of zip codes, where each zip code is a row. A frequency row will generate a row for each value using the actual values in the data as row text.
This option creates one table for each variable selected.
Variables can be non-contiguous by selecting the Ctrl key when selecting variables from the list.
The table(s) is created using a default formatting mask and Sort order of Ascending.

Note: Enable the Show job file definition view check box to display the Job file definition window.

Tables

When a table is created from a variable or group of variables, the variable Name becomes the table Name and the variable Label becomes the table Title. When multiple tables are selected and either Create One Table with n Rows or Create One Table Using Net Logic is selected, the variable Name and Label of the last variable selected become the table Name and table Title for the new table.
The table list displays the Name, Title and Index number for each table in the list.
When a table(s) in the list is selected, the job file definition for the table(s) selected display in the Job file definition list box.
Tables can be moved Up or moved Down in the list either separately or in a group including non-contiguous tables.
Tables can be renumbered by selecting a single table and choosing Renumber, however, the starting table Name must be numeric. Renumbering will begin at the selected table and continue to the end of the table list. The starting value will be the table Name of the selected table.
To renumber the starting table Name edit the table number in the Job file definition list box and select Accept Changes. Choose Discard Changes to cancel modifications made in the Job file definition list box.
Table Index numbers are displayed in the tables list to the right of the Title. Use the scroll bar at the bottom of the table list if necessary to see the Index column.
To assign new index numbers to all tables, select Reindex. Enter the starting value if different than 1. The starting value is always incremented by 1. USE statements will be adjusted automatically to reflect the new table index values.
You can duplicate a single table by highlighting the table and selecting Duplicate. The table is duplicated below the selected table and is assigned a unique Index number.
You can add table options, table statistics, add filter logic, edit row text, add rows, delete rows, add NET and SUB rows and more by highlighting a single table and selecting Edit. Alternatively, you can double-click a single table to launch the Express Table Editor dialog box.
Choose Select All to select all of the tables in the table list. Reindex, Format and Delete are the only actions allowed when all tables have been selected using Select All.
Format lets you align table logic as close as possible to the row text for each table. The logic is aligned to the longest row text in the table. You can format your entire job file by choosing Select All and then Format. Formatting tables creates a job file that is easier to edit and helps to locate errors identified in the report log when running tables.
Filter allows you to specify a Filter title, Filter logic and Filter type for the selected table(s).
Choose Delete to remove a table or group of tables. When selecting tables for deletion, tables can be non-contiguous by selecting the Ctrl key.

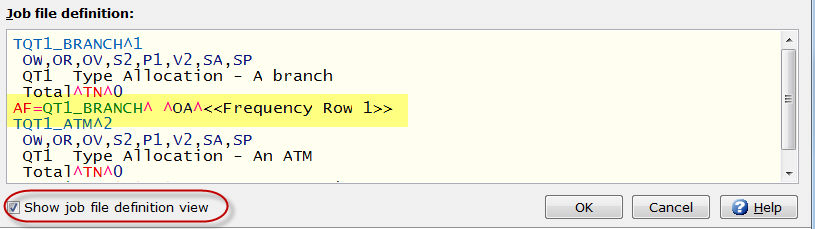

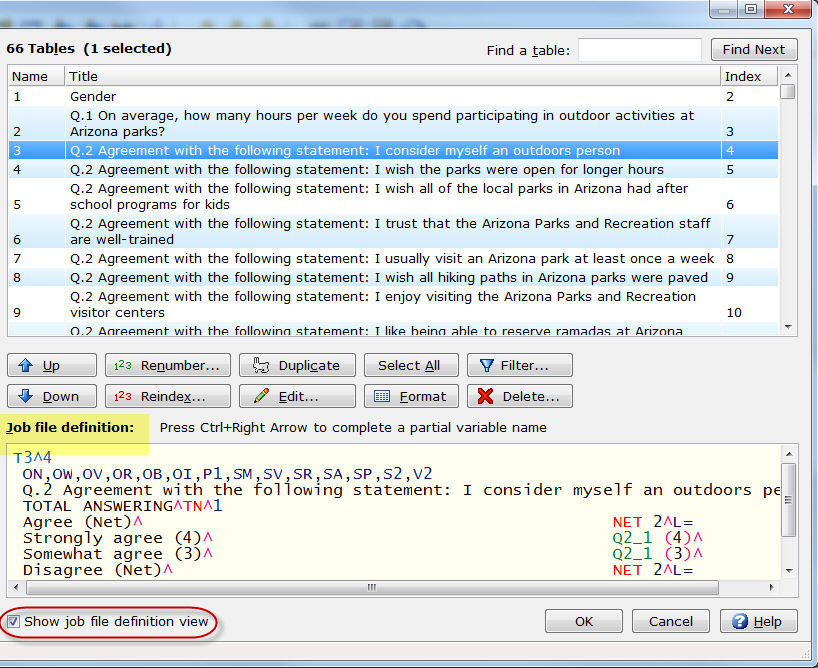

Enabling the Show job file definition view check box will display the Job file definition portion of the Express Tables from Variable Data dialog.

For new tables created from variables in the variables list, the Job file definition list box displays the table(s) as it will appear in the job file (View|Job File).
For existing tables, the Job file definition list box displays the table(s) selected as they currently appear in the job file (View|Job File).

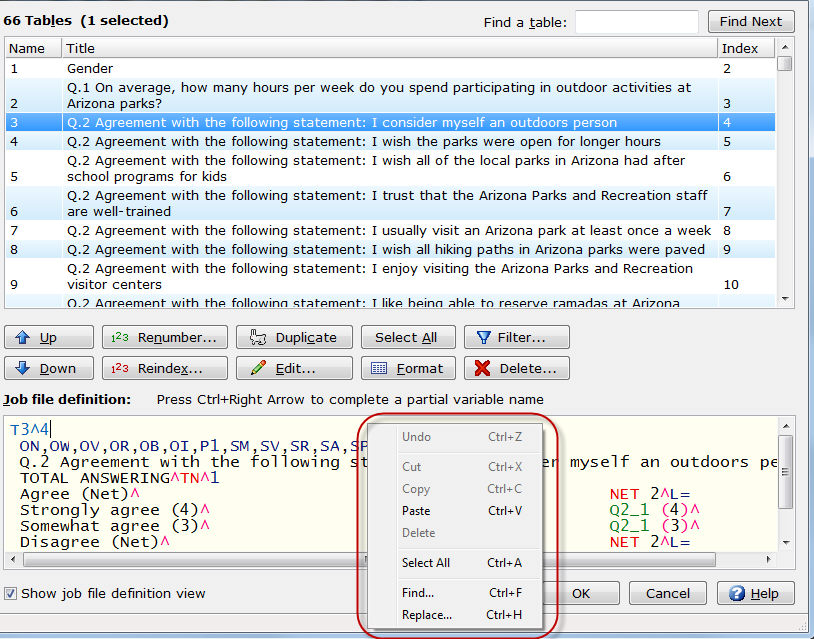

The Job file definition list box provides a right-click context menu with options to Undo, Cut, Copy, Paste, Delete, Select All, Find, and Replace.

When a change is detected in the Job file definition list box, the Accept Changes and Discard Changes options become enabled allowing you to accept or discard changes made here. Changes made and accepted here are not reflected in the current open job file, until you exit the Express Table from SPSS Data dialog box by selecting OK. You will still need to save your job (File|Save|Save Job) to permanently save your changes.
Selecting Cancel on the Express Tables from Variable Data dialog box will only cancel changes made using this dialog if the Apply Changes and Run Tables option was NOT selected. Once the Apply Changes and Run Tables option is selected, Cancel will only cancel changes made after the Apply Changes and Run Tables option was selected.
Save Changes allows you to save changes made in Express Tables from Variable Data without exiting this dialog.

Note: Changes saved using the Save Changes option are permanently saved to your job file, so use this option with care.

Apply Changes and Run Tables allows you to apply changes and run tables to quickly view the results of your current changes. The Run Tables dialog box displays and allows you to use all of the Run Tables options with the exception of writing tables using the Report viewing format of Enhanced text report. You cannot print tables produced using the Apply Changes and Run Tables option.
The Apply Changes and Run Tables option saves all changes made using the Express Table from Variable Data dialog box to the currently open job file. You will still need to save your job (File|Save|Save Job) to permanently save your changes.

** This feature is not available in WinCross Runtime version.
