How to create a chart in WinCross

Step 1 - Run your banners/tables using Run|Tables.

Step 2 - Specify the chart style using the Setup|Chart Style tabs.

You can use the WinCross defaults for Chart Style by not changing any of the Chart Style options currently specified. If no changes are made the active chart style becomes the WinCross defaults for Chart Style.
You can load a previously saved Chart Style using the Load Chart Style button.
You can save the Chart Style currently defined using the Save Chart Style As button.
The Chart Style defined here becomes the active chart style - this is important when you get to the next step of specifying Chart Content.

Step 3 - Specify chart content using the Setup|Chart Content tabs. You can run all of your tables and then choose only the banners/tables you want to create charts for here or use Remove from Table List to eliminate those banners/tables you do not want to create charts for.

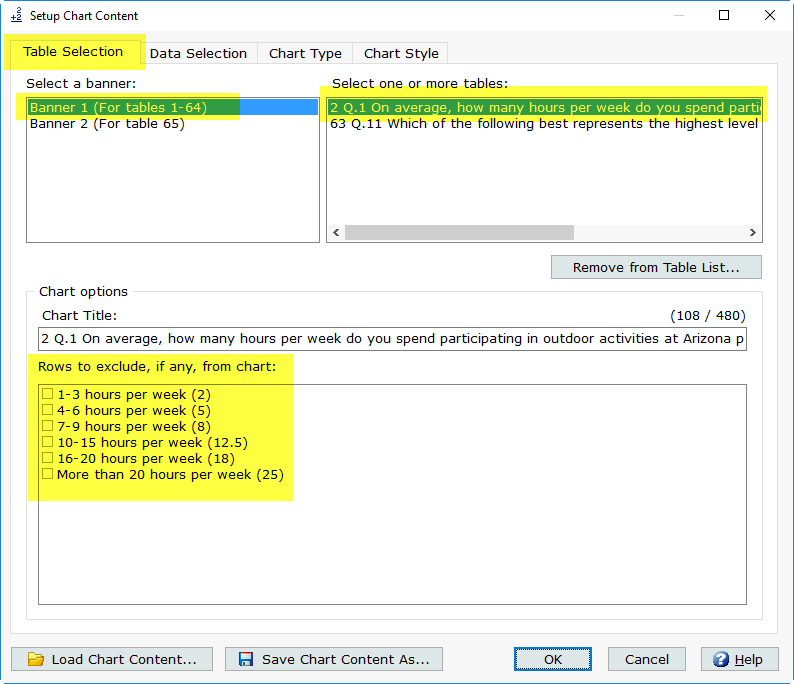

Select the banner and table(s) on the Table Selection tab.
Choose Rows to exclude, if any, from chart.

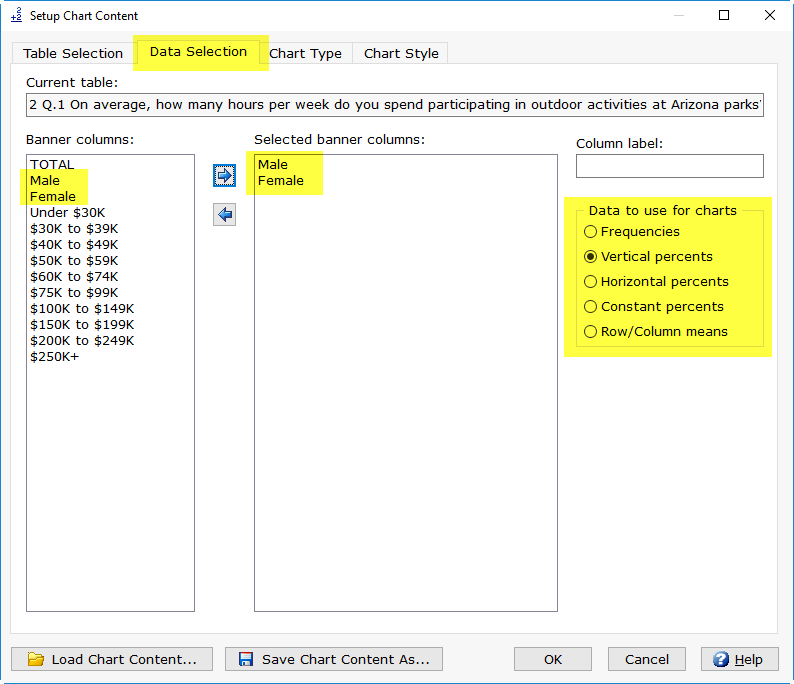

Select the banner columns to be used as the chart data series from the Banner columns list on the Data Selection tab.
Specify the data to use as the data points of the chart in Data to use for charts.

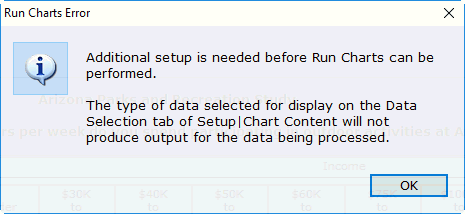

The selection for Data to use for charts needs to be a row specified on the table (for example, if Horizontal percents is selected in Data to use for charts and horizontal percents were not specified as a table option when the table was created and processed, you will get a error message box indicating the data on the table(s) does not match the data type selected in Data to use for charts).

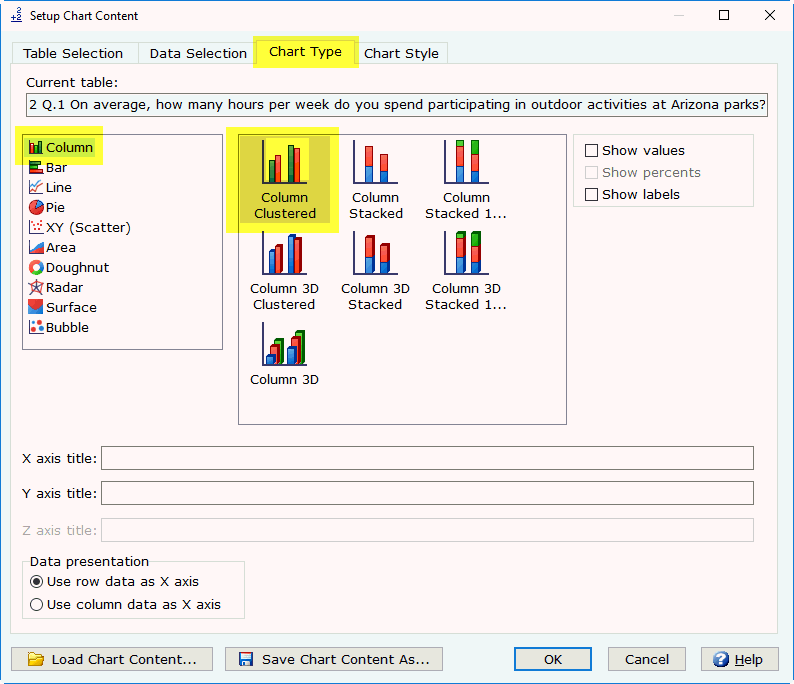

Step 4 - Choose the chart type for your table(s) using the Chart Type tab.

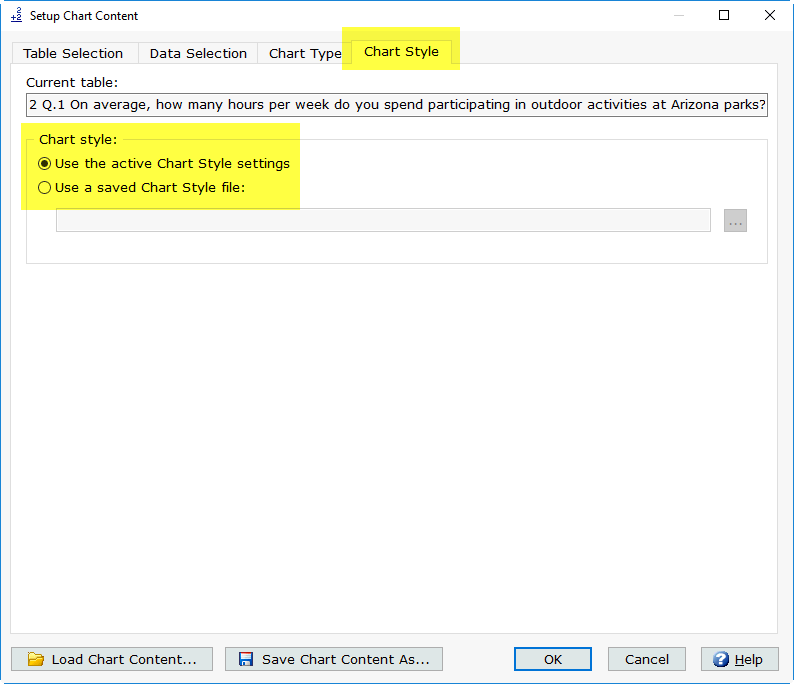

Step 5 - The Chart Style tab lets you select a previously saved Chart Style (see Step 2 above) or use the default active Chart Style.

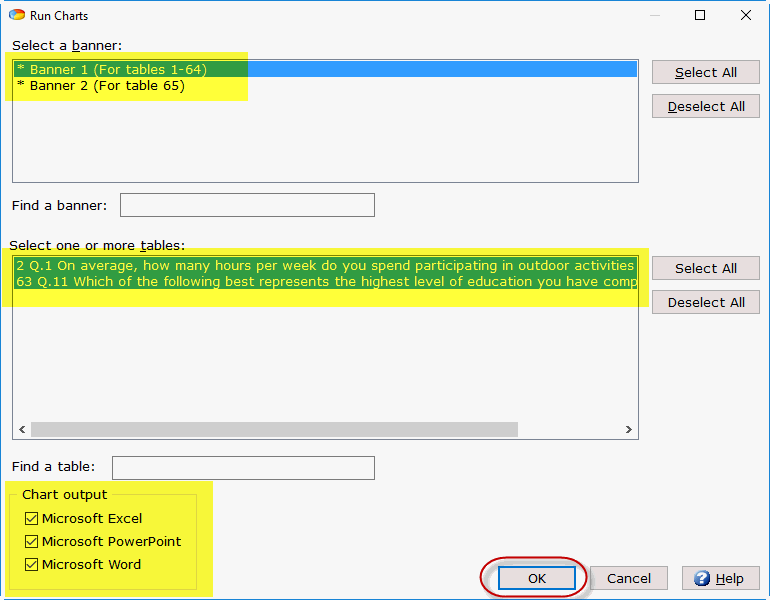

Step 6 - Select Run|Charts.

Select the banner and tables you want to create charts for. Only those banners/tables selected for charting will display on the Run Charts dialog box.
Choose the Chart output format for your charts (Microsoft Excel, Microsoft PowerPoint and/or Microsoft Word).
Select OK and enter a File name for your chart(s).
Each selected Chart output format launches the corresponding application and your chart(s) is displayed in that application.
Microsoft Excel displays each chart on a separate worksheet.
Microsoft PowerPoint displays each chart on a separate slide.
Microsoft Word displays all charts in one document.
