Add Freq Row

Setup|Tables|Add Freq Row lets you quickly create row(s) for a table from a variable or record/column location with many values. For example, you might want a table of zip codes, where each zip code is a row. Using frequency rows, WinCross will generate a row for each value using the actual values in the data as row text.

Frequency rows can be added for a new table or to an existing table. You can add multiple frequency rows to a single table and the frequency rows can be inserted in between regular rows.

Selecting Add Freq Row automatically adds a row name beginning with the name <<Frequency Row 1>> and incrementing from there (i.e <<Frequency Row 2>>, <<Frequency Row 3>>, etc.) depending on the number of frequency rows you add to the current table. You can edit the Row name WinCross generates automatically for frequency rows using Edit Row.

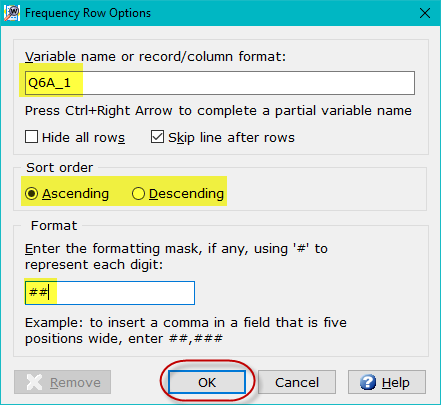

Select Add Freq Row to create a frequency row on your table.

Variable name or record/column format - Enter the variable name (if using a variable defined in the Glossary or using variable data) or record/column location of the data to be used as the frequency.

You can specify a range of values for the frequency variable.

Example: If there are up to 999 codes and you only want to display codes 1 through 500, you would enter:

Variable-type data: Q1_COST (1-500)

ASCII data: 1/20:3 (1-500)

Scan feature with frequency rows

If you have several contiguous variables or variables with the same number of columns between them, you can use the Scan (S) option.

Example: For a frequency row that looks across three variables or three 3-digit fields, you would enter:

Variable-type data: Q1A S3 (1-100)

ASCII data: 1/30:3 S3 (1-100)

Hide all rows - hides all of the rows generated from the frequency variable.

Skip line after rows - displays a blank line after each row.

Sort order - choose the order in which to write the values as rows (Ascending or Descending).

Format - Enter the format for punctuating the values that appear as row text. You can leave this field blank and WinCross will determine the width of the field and populate with pound signs (#) accordingly.

Use the # symbol or number 0 to indicate the digit placement. You must include as many #'s or 0's as the width of the variable or record/column location. Enter the format in the position you want the values to appear. You can also include text.

Example 1: To show the dollar amount spent on cars purchased, where the dollar amount is a width of 5 characters, you would enter:

$##,### spent on vehicles

to result in row text of : $13,000 spent on vehicles

Example 2: To show 9-digit zip codes, you would enter:

00000-0000

to result in row text of: 94109-2019

Select OK to close the Frequency Row Options dialog box.

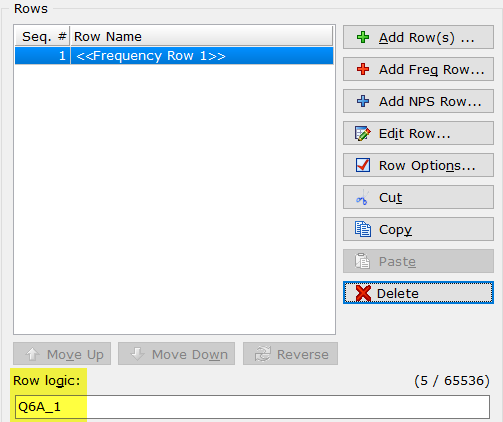

The Row logic in Setup|Tables now contains the variable name or record/column location you entered on the Frequency Row Options dialog box.
