BannerTemplates from Variable Data|Add/Edit Selected Variable

In Setup|Banner Templates from Variable Data you can add variables from the variable type data file to the current banner template or edit an existing variable that was previously added to the current banner template.

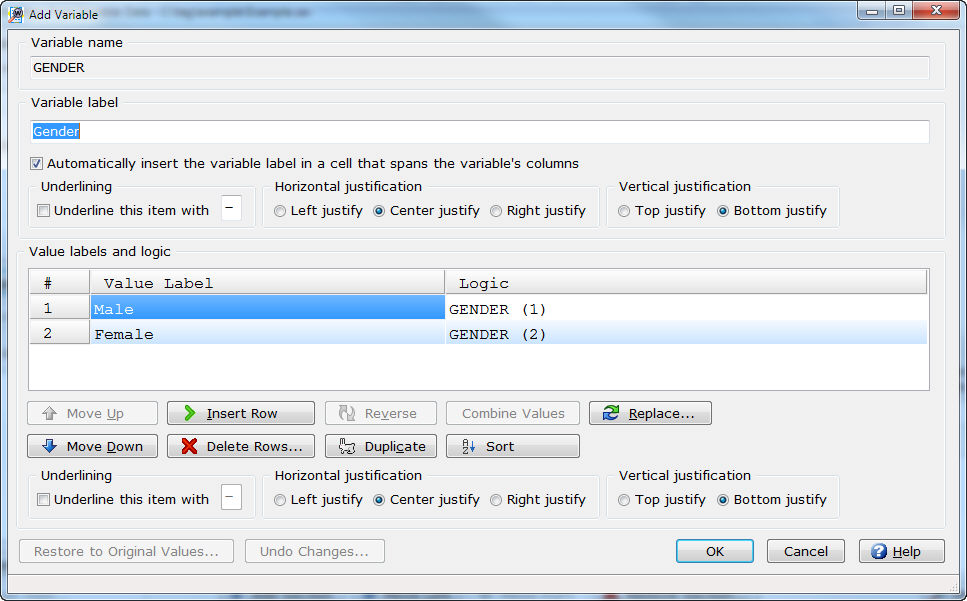

Add Selected Variable(s)

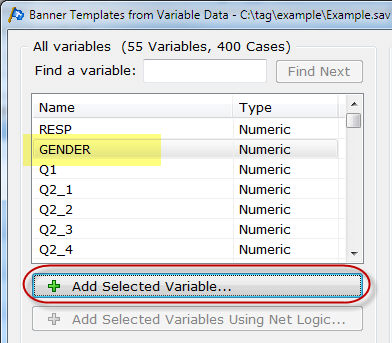

Highlight the variable(s) in the variable list box.
Select Add Selected Variable to add the selected variable(s) to the current Section.

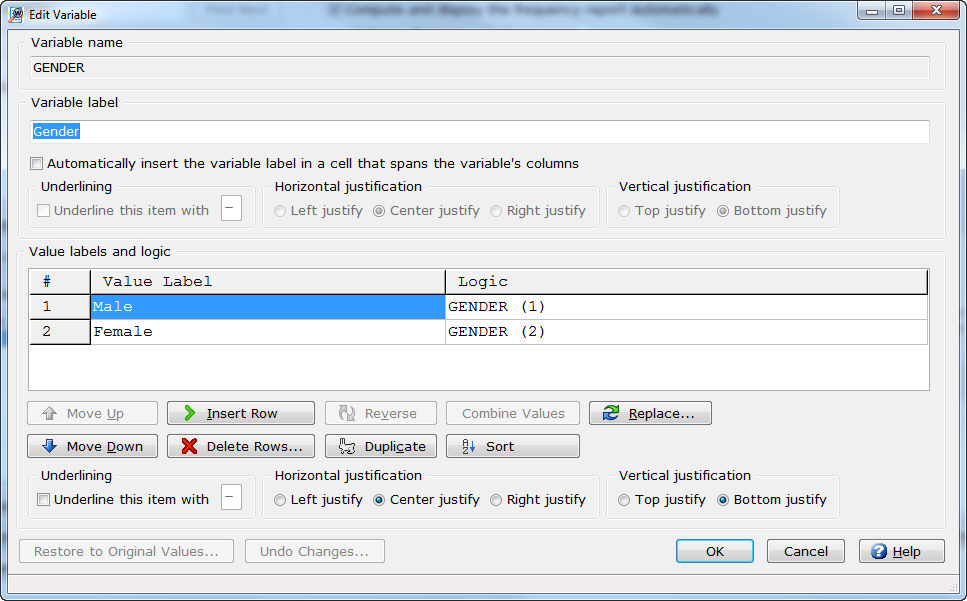

Edit Selected Variable

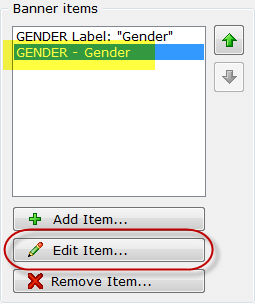

Highlight the variable in the Banner items list box.
Select Edit Item to edit the selected variable from the current Section.

Variable name

Displays the Variable name from the data file.
The Variable name cannot be modified.

Variable label

Displays the Variable label from the data file.
The Variable label can be modified.

Automatically insert the variable label in a cell that spans the variable's columns

Select the Automatically insert the variable label in a cell that spans the variable's columns check box to use the Variable label as a banner heading above the banner columns created using this variable.

Underlining

Select the Underline this item with check box and enter the character to use for underlining when using the Variable label as the banner heading above the banner columns created using this variable.

Horizontal justification

Select the Horizontal justification (Left justify, Center justify or Right justify) when using the Variable label as the banner heading above the banner columns created using this variable.

Vertical justification

Select the Vertical justification (Top justify or Bottom justify) when using the Variable label as the banner heading above the banner columns created using this variable.

Value labels and logic

Value Label

Displays the Value Label for each code value found in the data file for the selected variable.
The Value Labels can be modified.

Logic

Displays the Logic that is generated by WinCross for each code value found in the data file for the selected variable.
The Logic can be modified.

Move Up/Move Down

Use Move Up and Move Down to rearrange the order of Value labels and logic.

Insert Rows/Delete Rows

Use Insert Rows to add new Value labels and logic rows.
New rows are always inserted above the selected row.
Use Delete Rows to delete an existing Value labels and logic row.
Multiple Value labels and logic rows can be selected for deletion but they must be contiguous.

Reverse

Reverse can be used to reverse the order of Value labels and logic rows.
More than one Value labels and logic row must be selected to use the Reverse option.

Duplicate

Use Duplicate to duplicate a Value labels and logic row.
Multiple Value labels and logic rows can be selected for duplication but they must be contiguous.

Combine Values

Use Combine Values to combine two or more Value labels and logic rows into one row.
The resulting Logic reflects the combine code values.
The Value Label from the first row becomes the Value Label for the combined row but can be modified to reflect the combined Value Labels.

Sort

Highlight a Value Label or Logic cell and use Sort to sort the Value labels and logic rows.
When a Value Label cell is selected, the Value labels and logic rows are sorted in Ascending order by Value Label.
When a Logic cell is selected, the Value labels and logic rows are sorted in Ascending order by Logic.
Selecting Sort again reverses the sort order (i.e. if originally sorted in Ascending order, when Sort is selected again it will re-sort in Descending order).

Replace

Highlight the cell(s) for replacement.
Enter the string to use as the search criteria in the Find what: field.
Enter the string you want to use as replacement text or paste it from the clipboard in the Replace with: field.
Use Ignore case to ignore capitalization.

Underlining

Select the Underline this item with check box and enter the character to use for underlining the Value Labels from this variable when creating banner column text.

Horizontal justification

Select the Horizontal justification (Left justify, Center justify or Right justify) when using the Value Labels from this variable as the banner column text.

Vertical justification

Select the Vertical justification (Top justify or Bottom justify) when using the Value Labels from this variable as the banner column text.

Restore to Original Values

Allows you to restore any changes made to Variable label and/or Value labels and logic for this variable to the original values found in the data file.
Once changes have been made to the Variable label and Value labels and logic for a variable, if this variable is selected again from the variable list to be used again in the same Section or a new Section, the changes previously made are in effect.
Use Restore to Original Values if you want to start with the original values found in the data file for this variable.

Undo Changes

Allows you to "undo" changes made to this variable for the current Add Variable dialog session.
Undo Changes will undo all changes made to the variable for the current Add Variable dialog session.
