When creating a table, or report using a alpha/string variable the number of characters shown is derived from Job Settings | Max data field width.
If a job file is not open open WinCross will default to the maximum number of characters 32,767.
Job files created prior to WC21 have the Max data field width set to 12 characters. This can be adjusted under Job Settings | Max data field width. New job files will default to the maximum number of characters 32,767.
IMPORTANT: Once adjusted be sure to update any tables or banners that use a string variable as they will no longer be 12 characters.

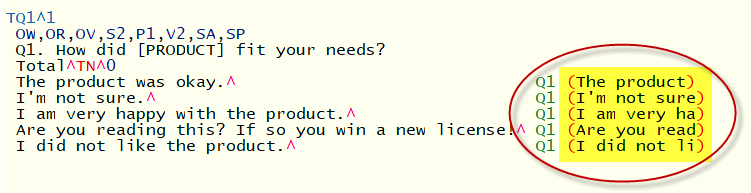

Example: Table Q1, created with the 12 character limit displays as such:

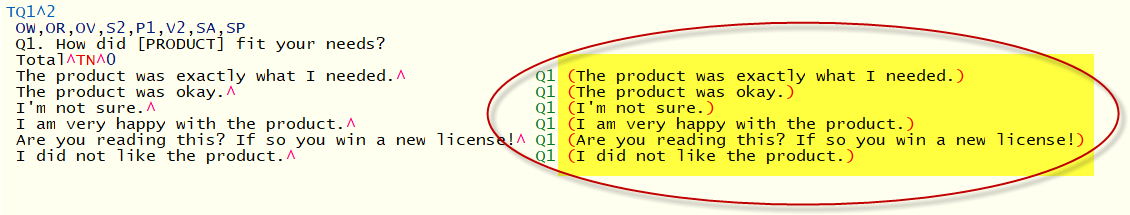

After adjusting the character limit to be max, 32,767, recreating the table uses the full string:
