Run | Charts | Chart Options | Series Colors

Series Colors adds the ability to specify which color(s) to use for each series/category. When left blank WinCross will apply Office default colors.

Add Color... - Add one color at a time. Each color selected will be added to the right of the color pallete. This is the order the colors will be displayed on the chart.

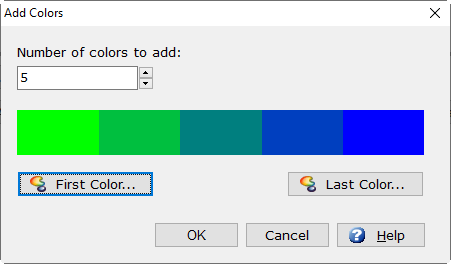

Add Multiple Colors... - Adds multiple colors based off the First Color and Last Color WinCross automatically creates a gradient based off the Number of colors to add.

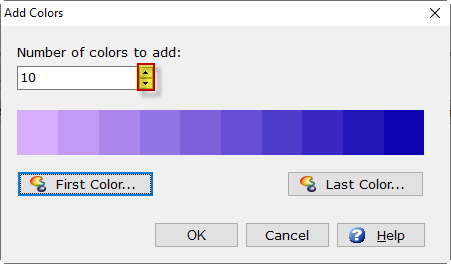

Number of colors to add defaults to 10 and can be adjusted using the up and down arrows

Adjusting the number of colors to add automatically adjusts the color selections using the first color and last color.

Example using custom colors

Reverse - Reverses the color order.

Undo - Undo most recent change.

Redo - Redo previous undone change.

Remove All Colors - Removes all colors.

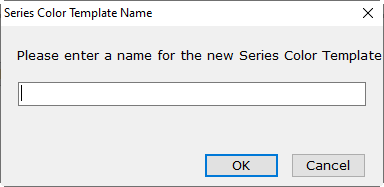

Add - Creates a new series color template that can be used on other jobs.

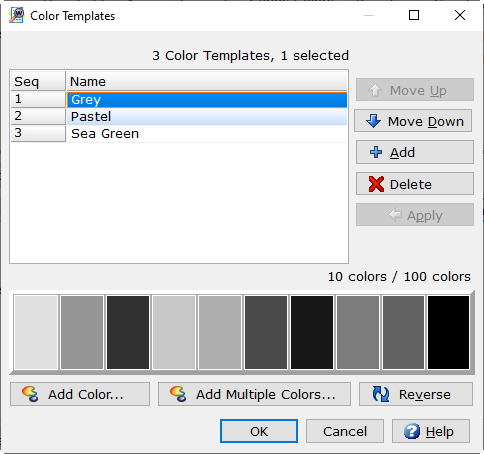

Manage - Manage existing color templates. Saved templates can be adjusted and applied to existing jobs.

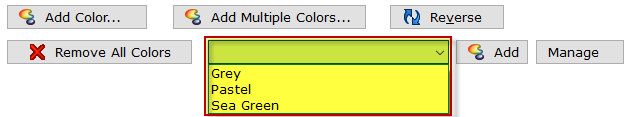

Drop-down menu - The drop-down menu shows all existing color templates that are available to use.

Repeat colors - Colors are repeated starting with the first color when there are more columns than colors selected.
