Setup|Chart Style|Tables tab

In Setup|Chart Style, you can specify general chart options using the Tables tab.

Chart title font

Use Chart Area font - Uses the font, font style, size and color selected on the Chart Area tab as the font for the Chart title.

Note: The Chart Area font style, size, color and background color will be reflected in the display box under the Set Font Color button when Use Chart Area font is selected.

Use a custom font - Allows you to select a custom font, font style, size and color for the Chart title.
Set Font - Choose the font, font style, size, effects and color for the Chart title.
Set Font Color - Choose the font color from a wider selection of color choices for the Chart title.

Note: The Custom font style, size, color and Chart Area background color will be reflected in the display box under the Set Font Color button when Use a custom font is selected.

Chart title justification - Justifies the Chart title as Left, Center or Right.

Display options

Exclude filter from chart - Excludes the filter row from being used as chart data.
Exclude summary rows from chart - Excludes summary rows from being used as chart data.
Don't show the filter - Programmed table filter/base will not show on chart.

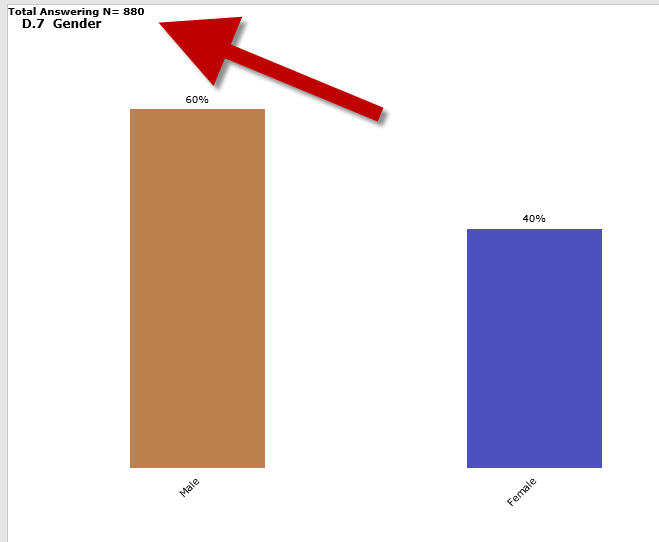

Show filter above the chart - Programmed table filter/base will show above chart

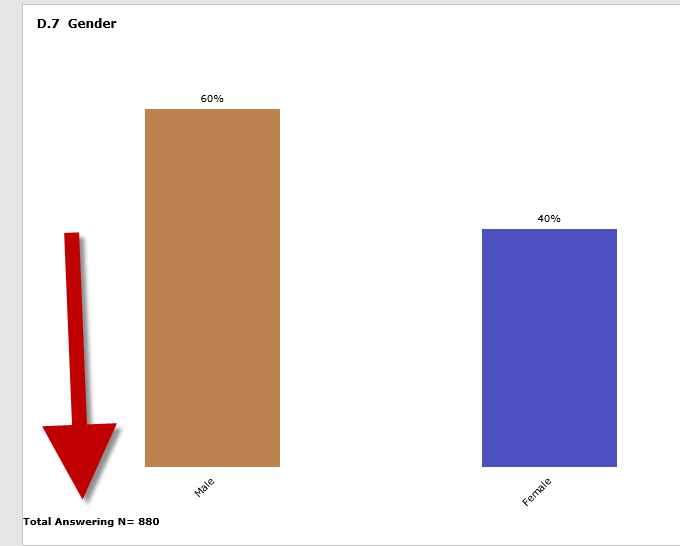

Show filter below the chart - Programmed table filter/base will show below chart

Value label

Note: The Value label options specified here are applied to the Show values, Show percents (only valid for certain chart types such as Pie and Doughnut) and Show labels options specified on the Setup|Chart Content|Chart Type tab.

Use Chart Area font - Uses the font, font style, size and color selected on the Chart Area tab as the font for the Chart title.

Note: The Chart Area font style, size, color and background color will be reflected in the display box under the Set Font Color button when Use Chart Area font is selected.

Use a custom font - Allows you to select a custom font, font style, size and color for the values, percents and labels selected on the Chart Type tab of Setup|Chart Content.
Set Font - Choose the font, font style, size, effects and color for the values, percents and labels selected on the Chart Type tab of Setup|Chart Content.
Set Font Color - Choose the font color from a wider selection of color choices for the values, percents and labels selected on the Chart Type tab of Setup|Chart Content.

Note: The Custom font style, size, color and Chart Area background color will be reflected in the display box under the Set Font Color button when Use a custom font is selected.

Label rotation angle - Choose the angle (from -180 to 180) for displaying the value labels.
Show percent sign - Displays the percent sign (%) next to the value when the values being displayed are percents.
